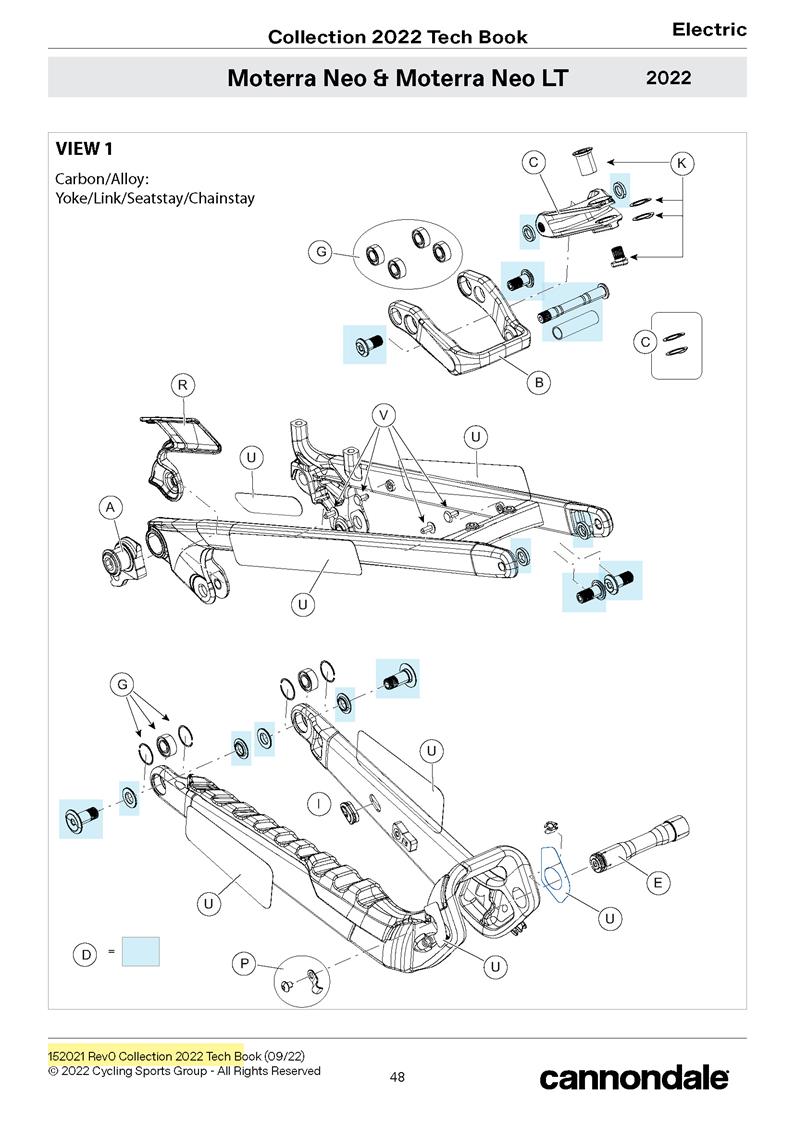

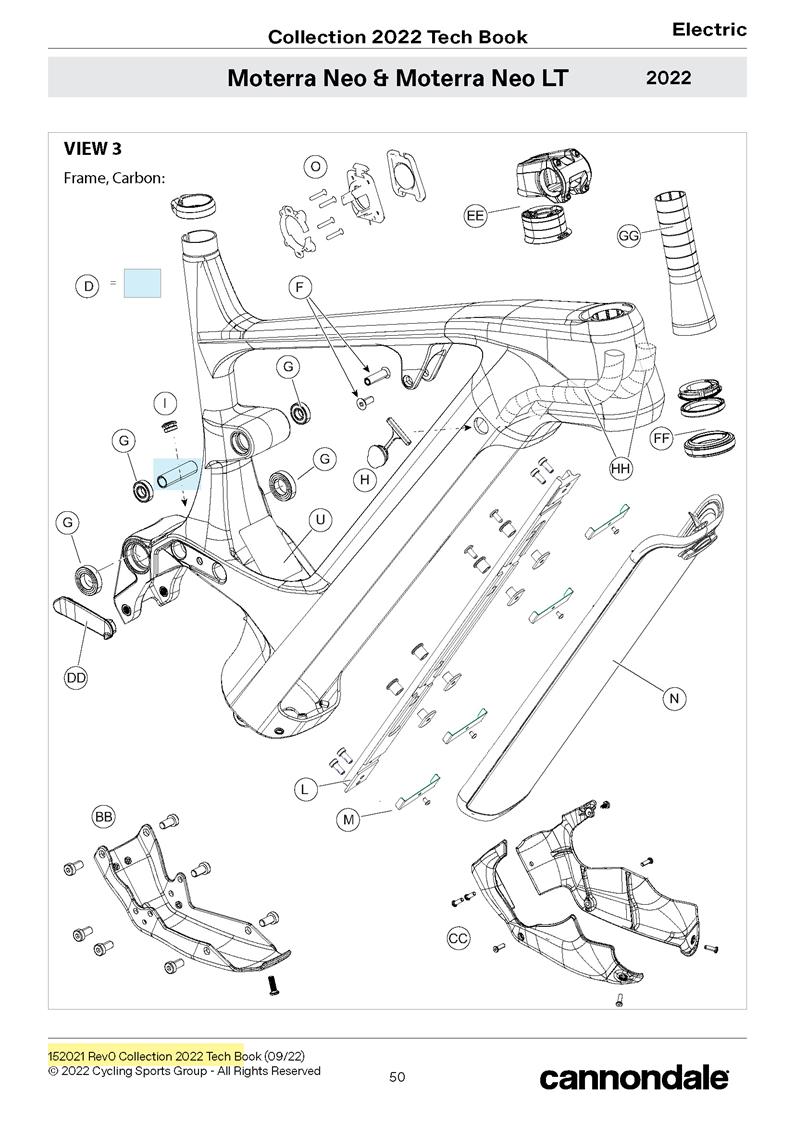

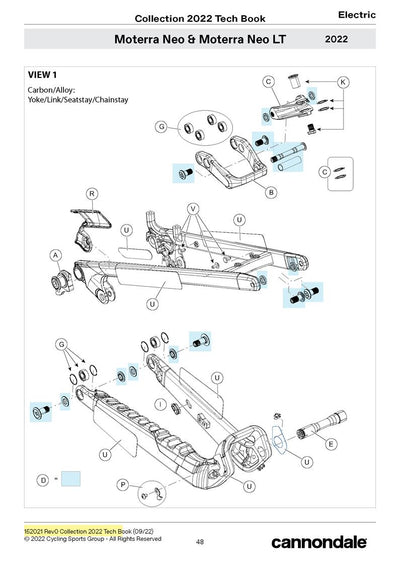

Moterra Neo 2022+ Frame Diagram RT

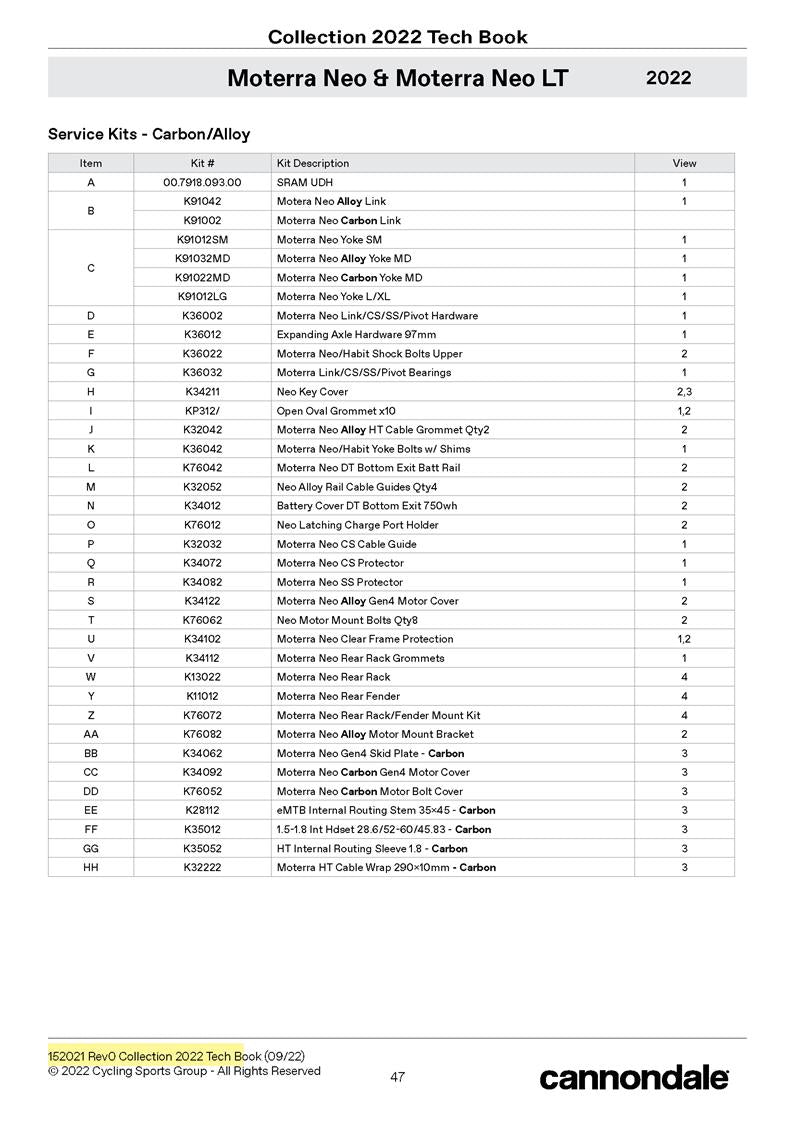

Moterra Neo 2022+ Frame Parts

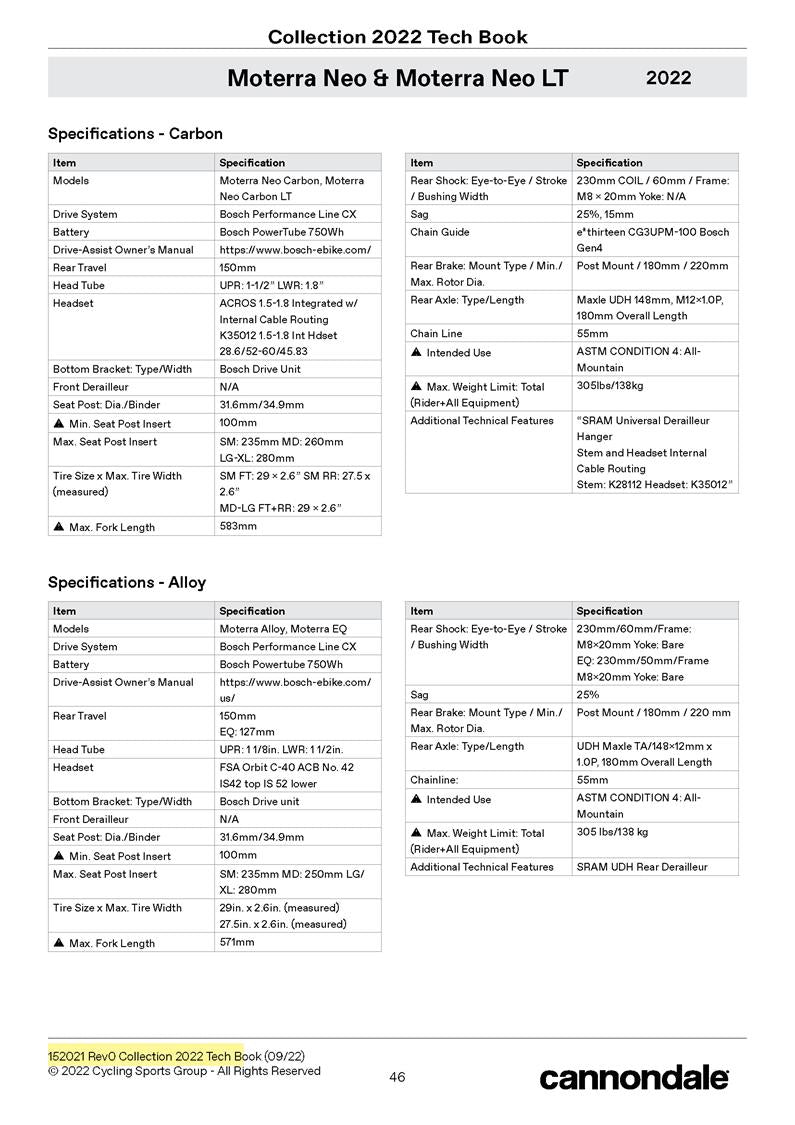

Moterra Neo 2022+ Frame Specs

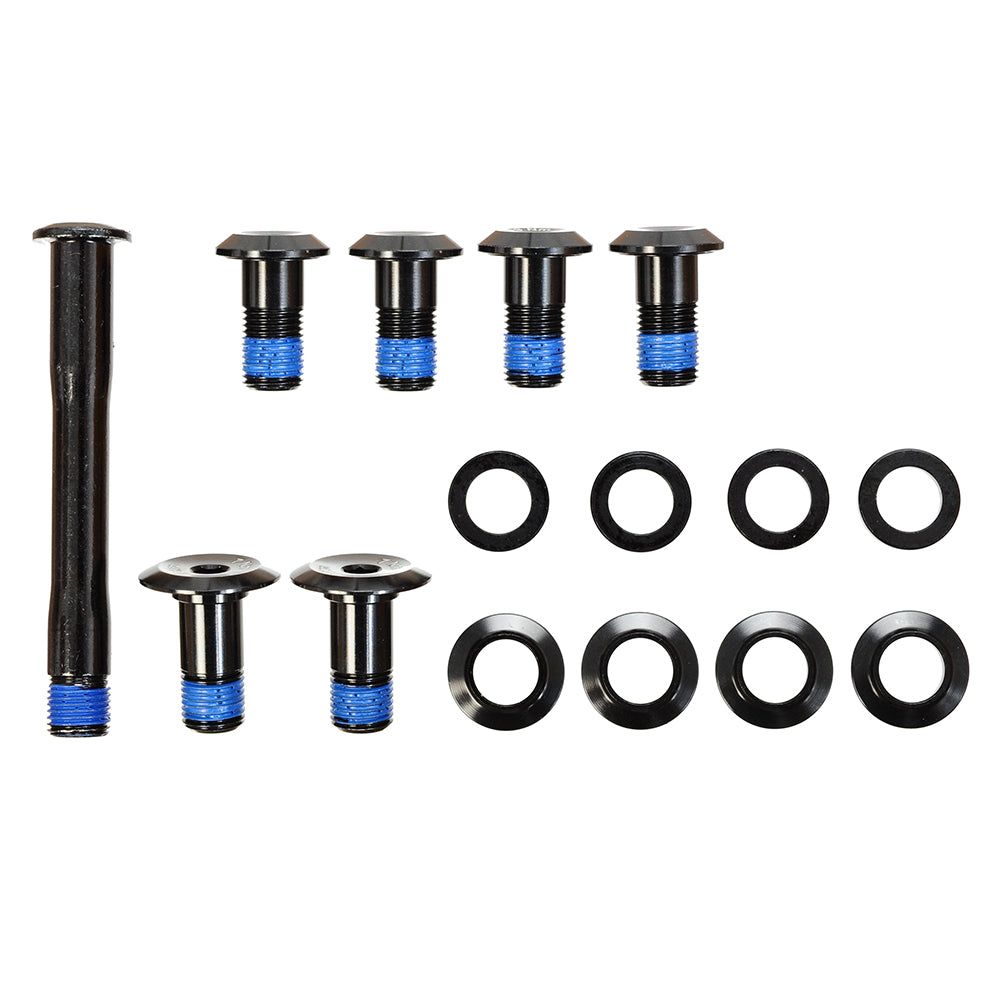

Cannondale Moterra Neo Link /Chain Stay / Seat Stay Pivot Hardware

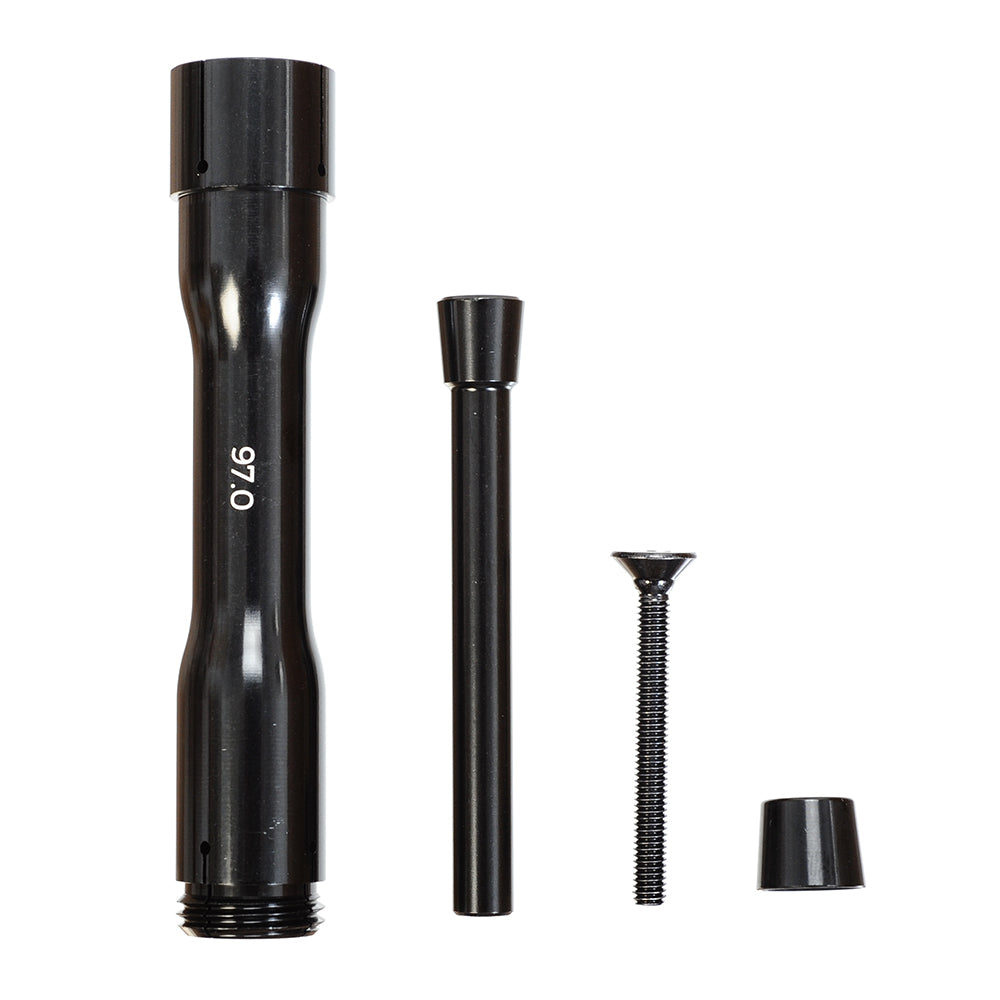

Cannondale Expanding Axle Hardware 97mm

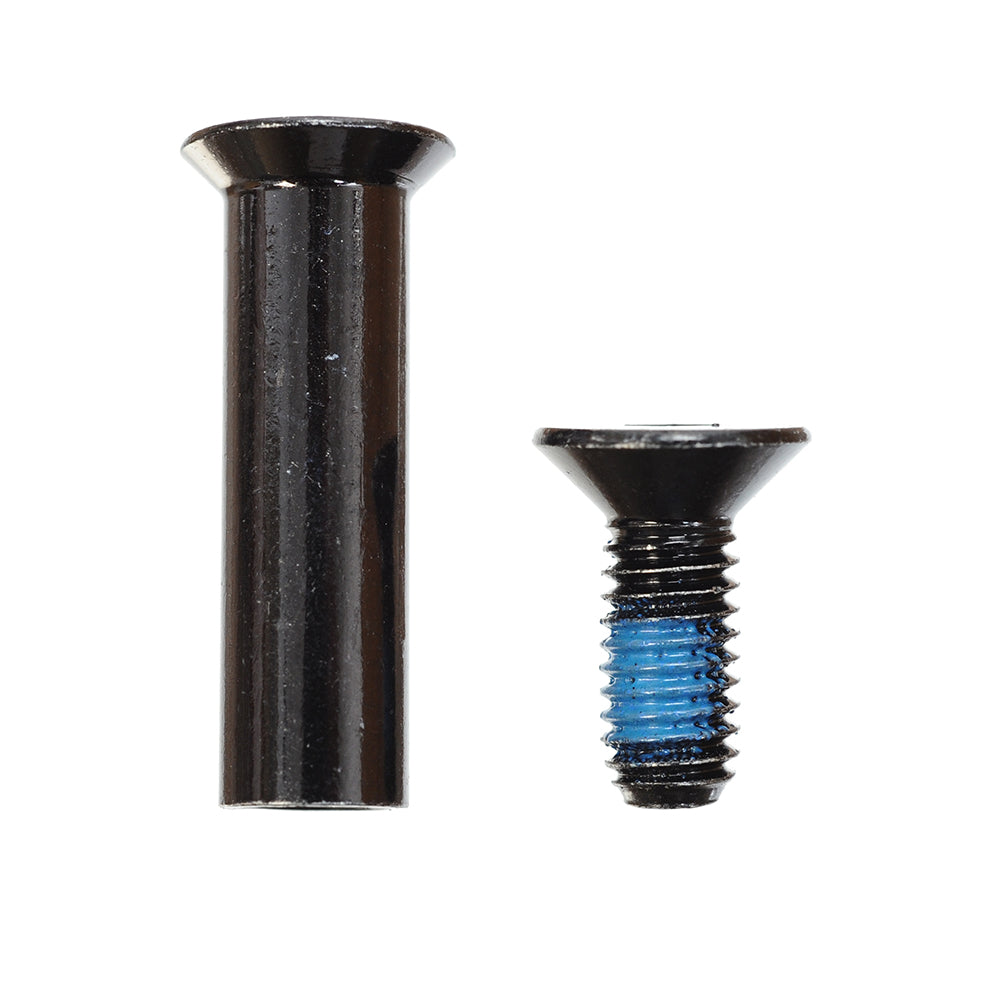

Cannondale Moterra Neo / Habit Upper Shock Bolts

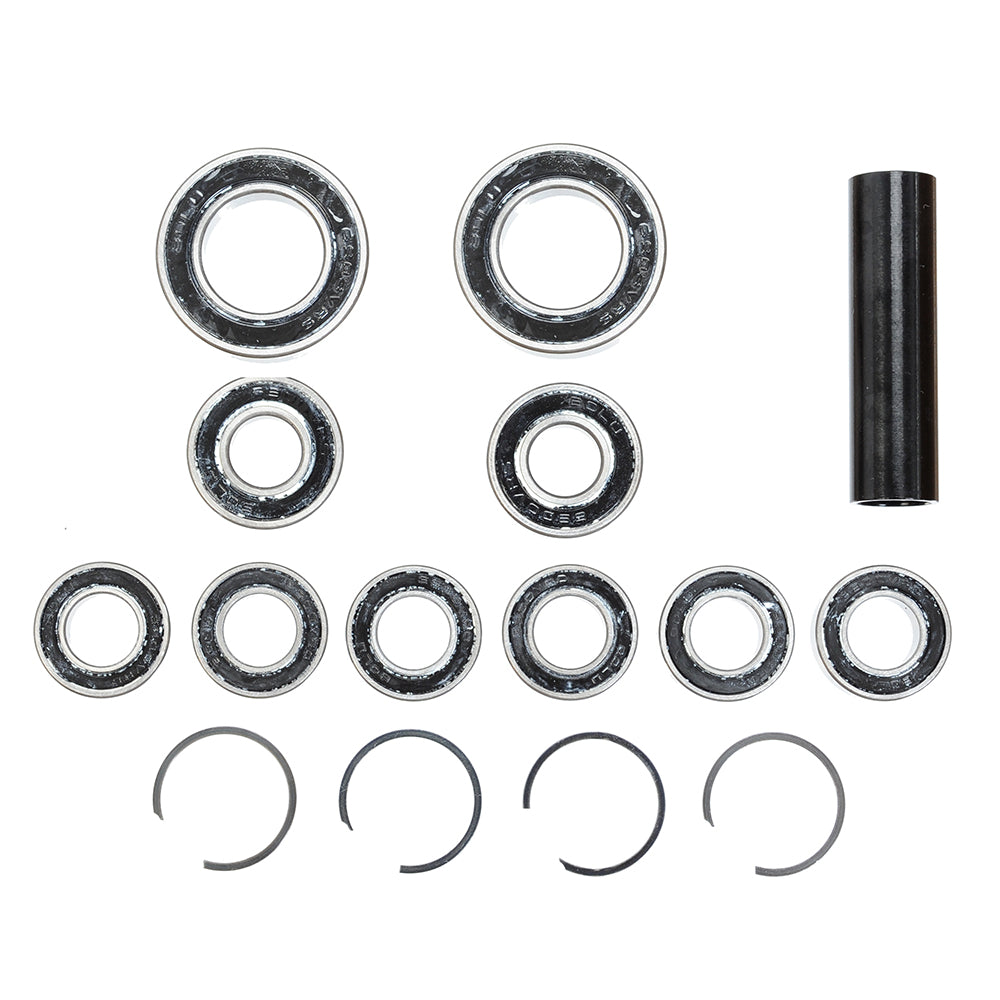

Cannondale Moterra Link / Chain Stay / Seat Stay Pivot Bearings

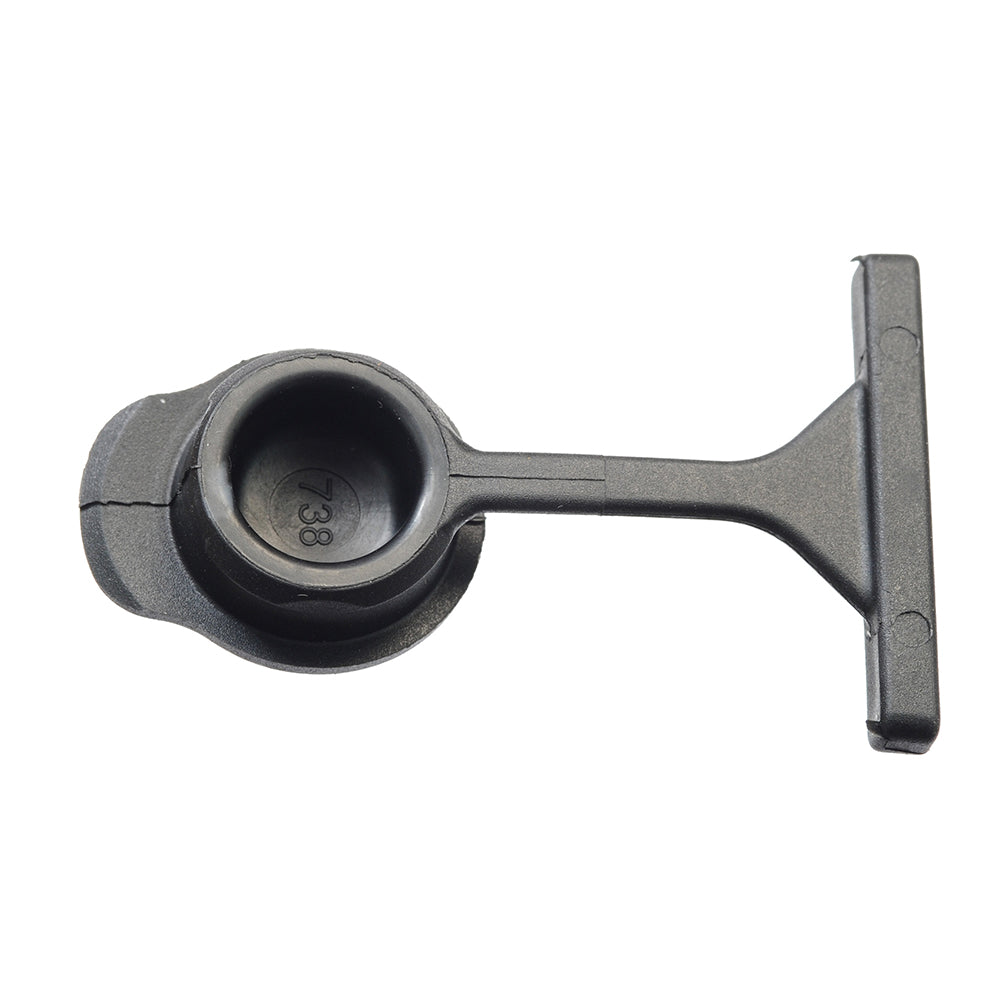

Cannondale Neo Key Cover Black

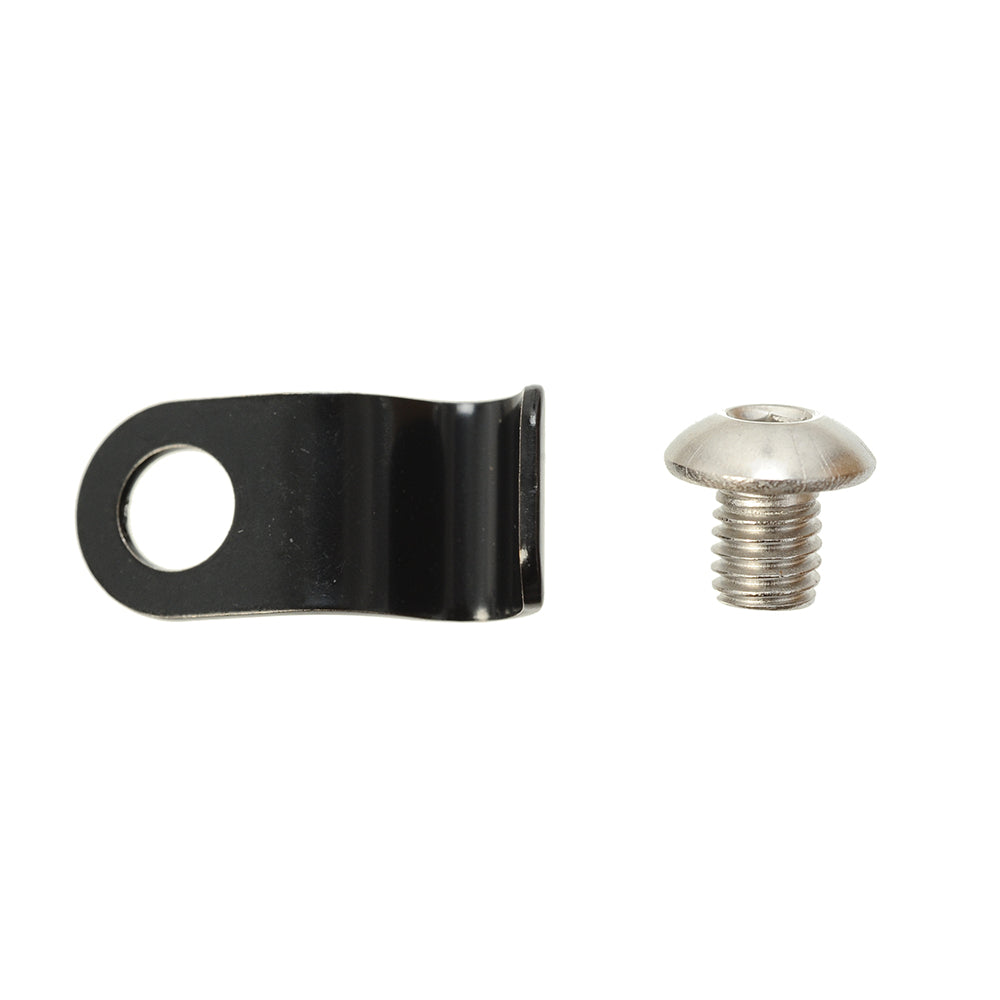

Cannondale Moterra Neo Down Tube Cable Guide

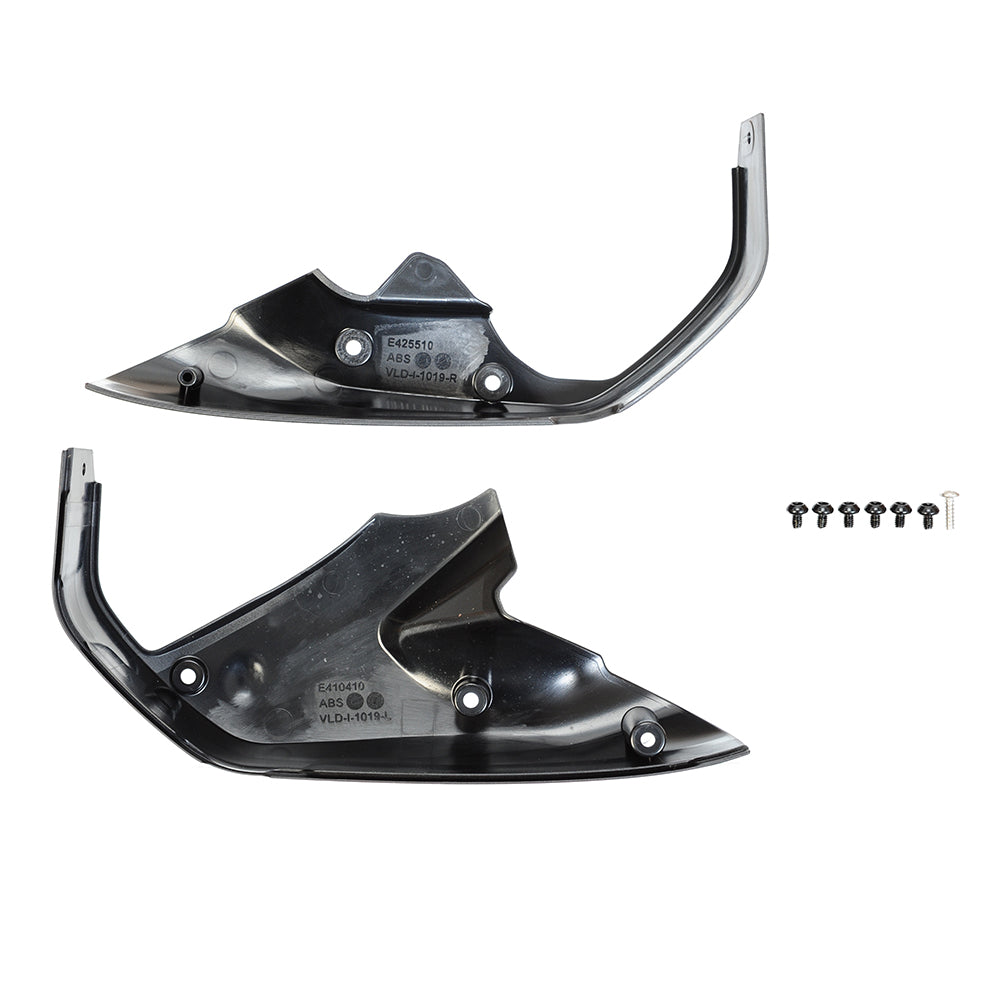

Cannondale Moterra Neo Alloy Gen4 Motor Cover

Moterra Neo Alloy Bosch 2022+ Spares


Regular price$129.90

  • Free nationwide shipping on all orders over $149

Moterra Neo Alloy Bosch 2022+ Spares

  • Drive System - Bosch Performance Line CX
  • Battery - Bosch PowerTube 750Wh
  • Rear Travel - 150mm
  • Head Tube - UPR: 1-1/2” LWR: 1.8”
  • Headset - FSA Orbit C-40 ACB No. 42 IS42 top IS 52 lower
  • Bottom Bracket: Type / Width - Bosch Drive Unit
  • Front Derailleur - N/A
  • Seat Post: Dia./Binder - 31.6mm/34.9mm
  • Min. Seat Post Insert - 100 mm
  • Max. Frame Seat Post Insert Depth - SM: 235mm MD: 250mm LG-XL: 280mm
  • Tire Size x Max. Width - 29in. x 2.6in. (measured) 27.5in. x 2.6in. (measured)
  • Max. Fork Length - 571mm
  • Rear Shock: Eye-to-Eye / Stroke / Bushing Width - 230mm/60mm/Frame: M8x20mm Yoke: Bare
  • Sag - 25%
  • Brakes: Mount Type/Min/Max Rotor Diameter - Post Mount / 180mm / 220mm
  • Axles: Type/Length - Maxle UDH 148mm, M12x1.0P, 180mm Overall Length
  • Max. Weight Limit: Total - 138kg
