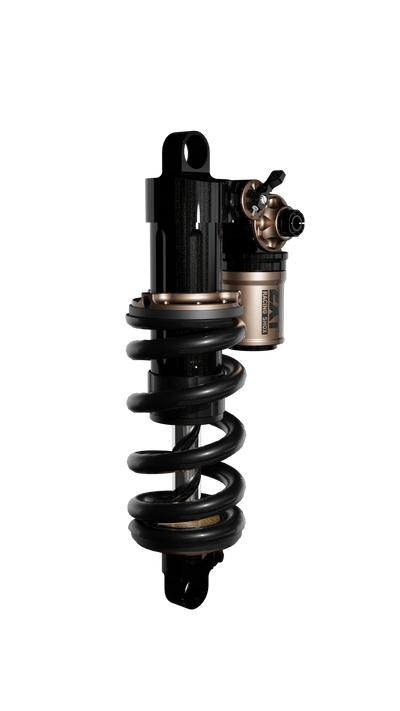

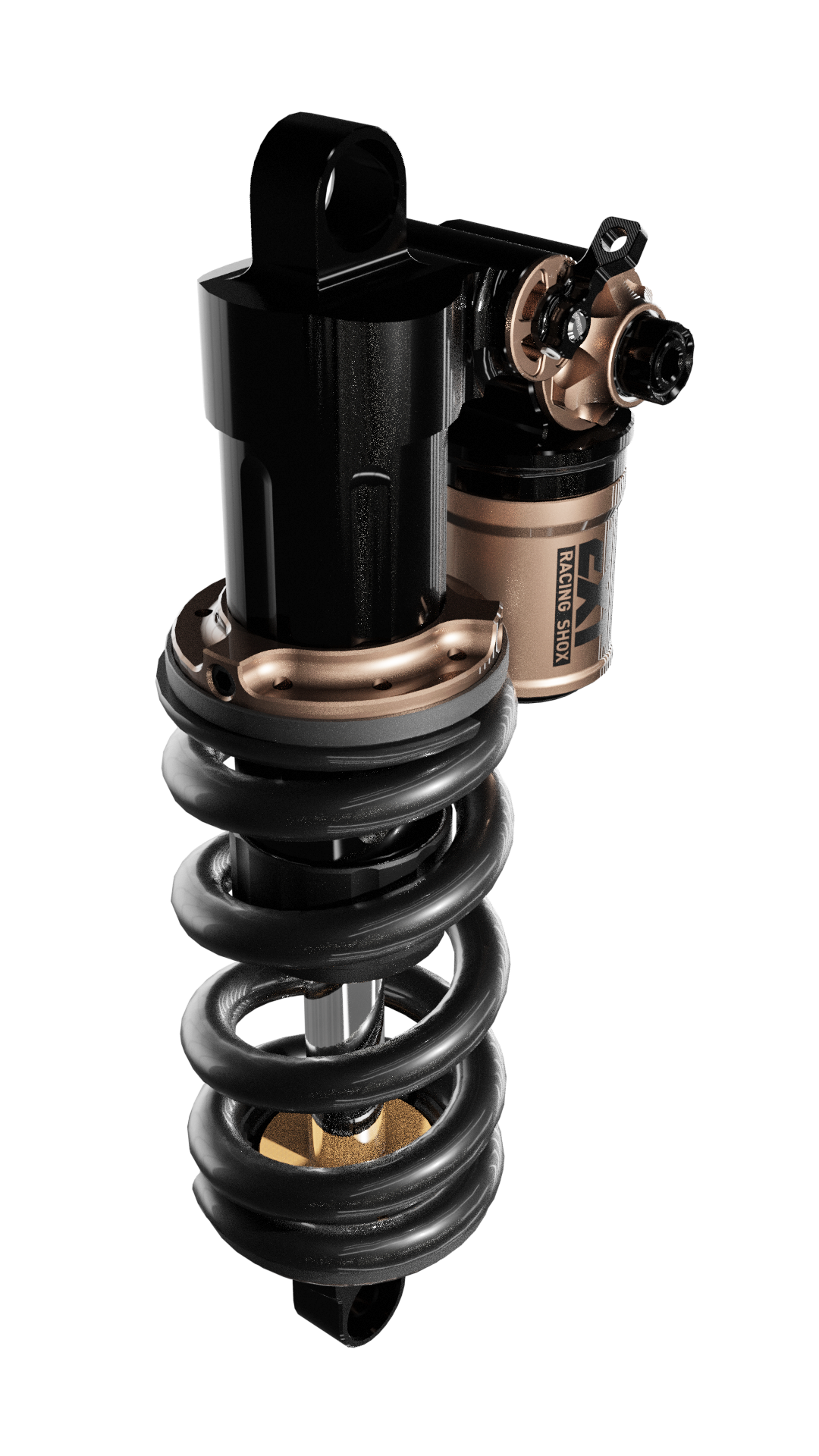

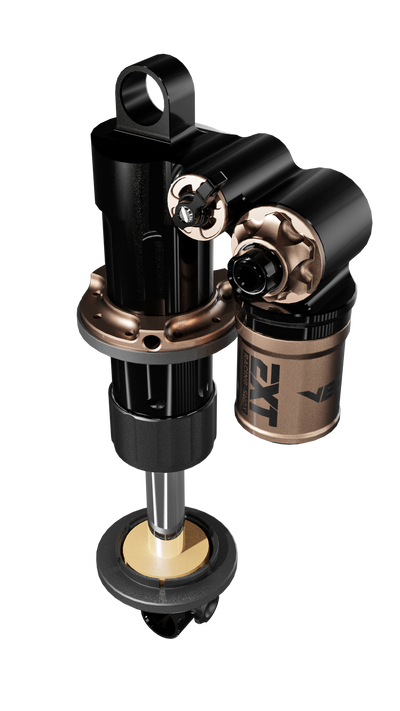

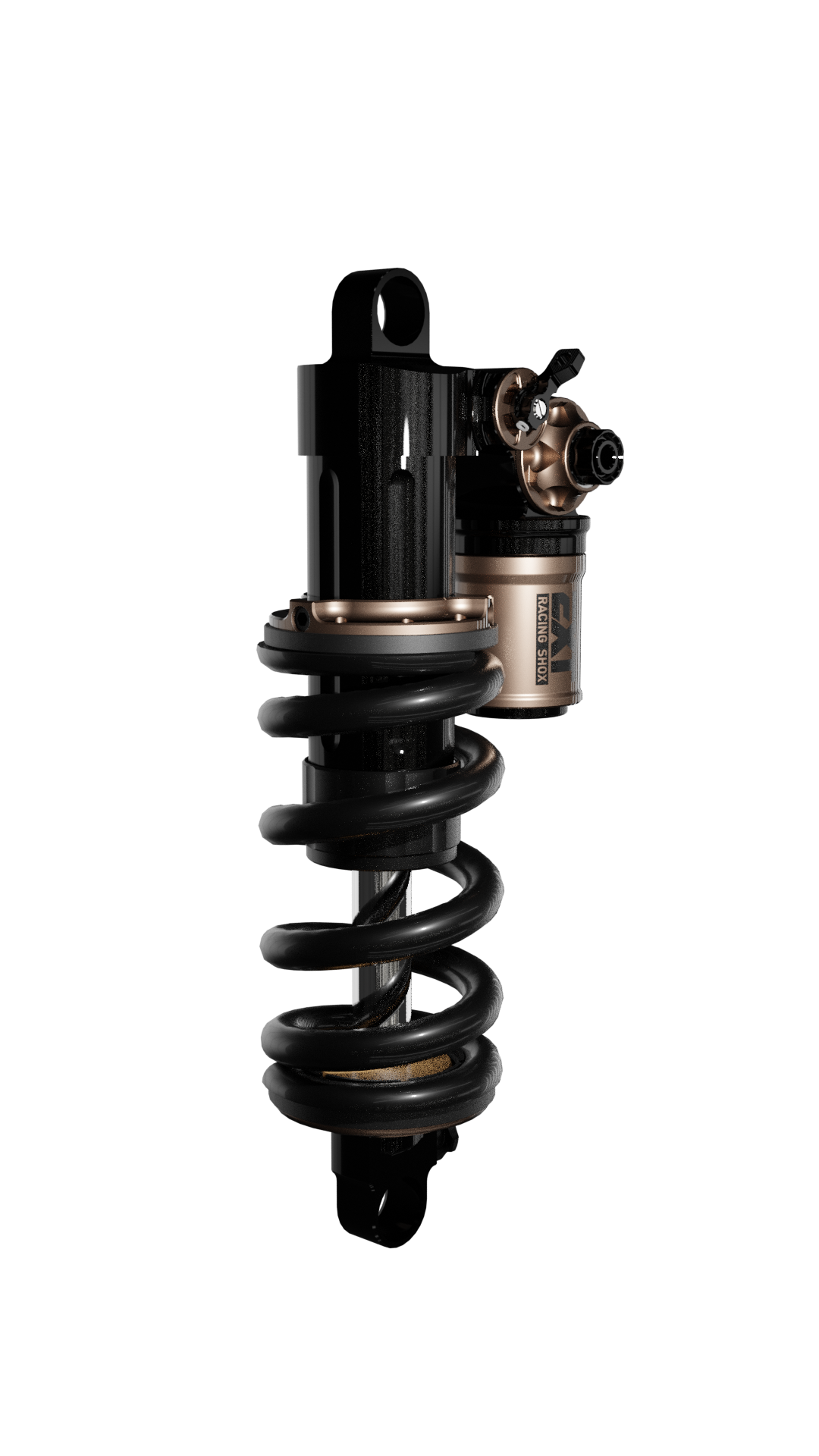

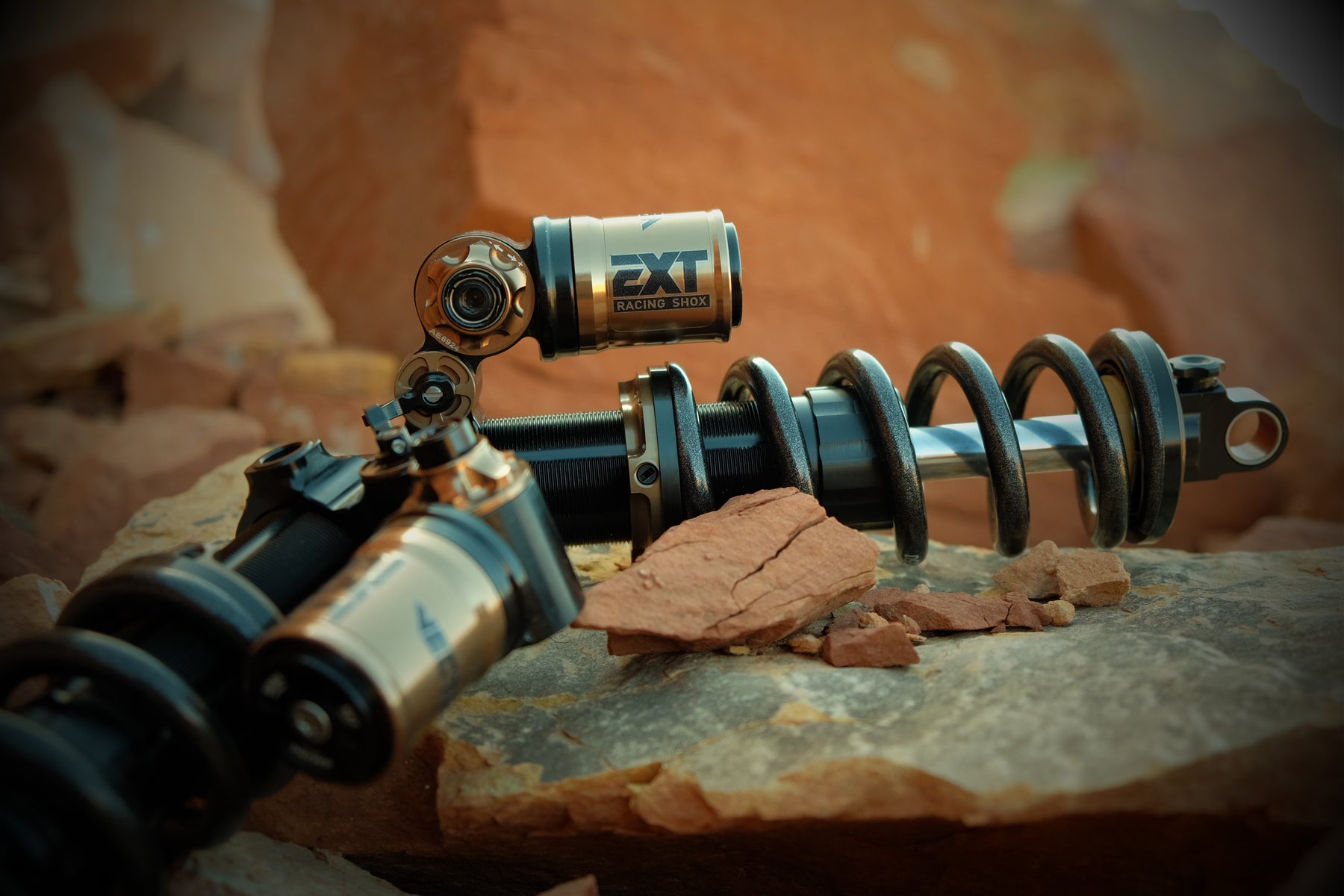

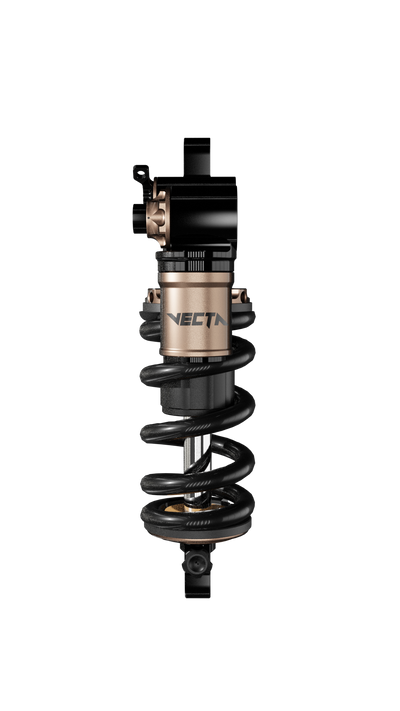

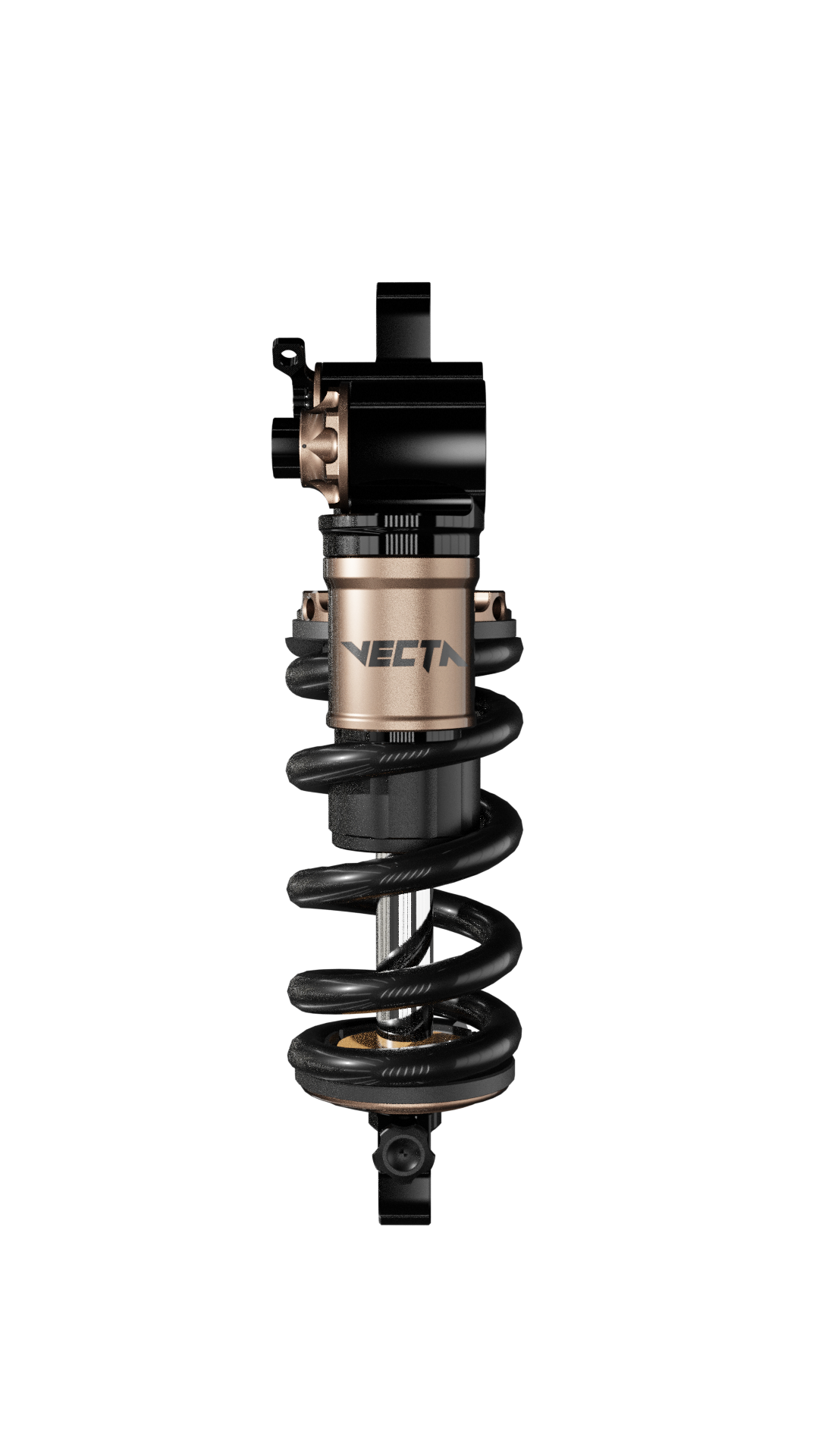

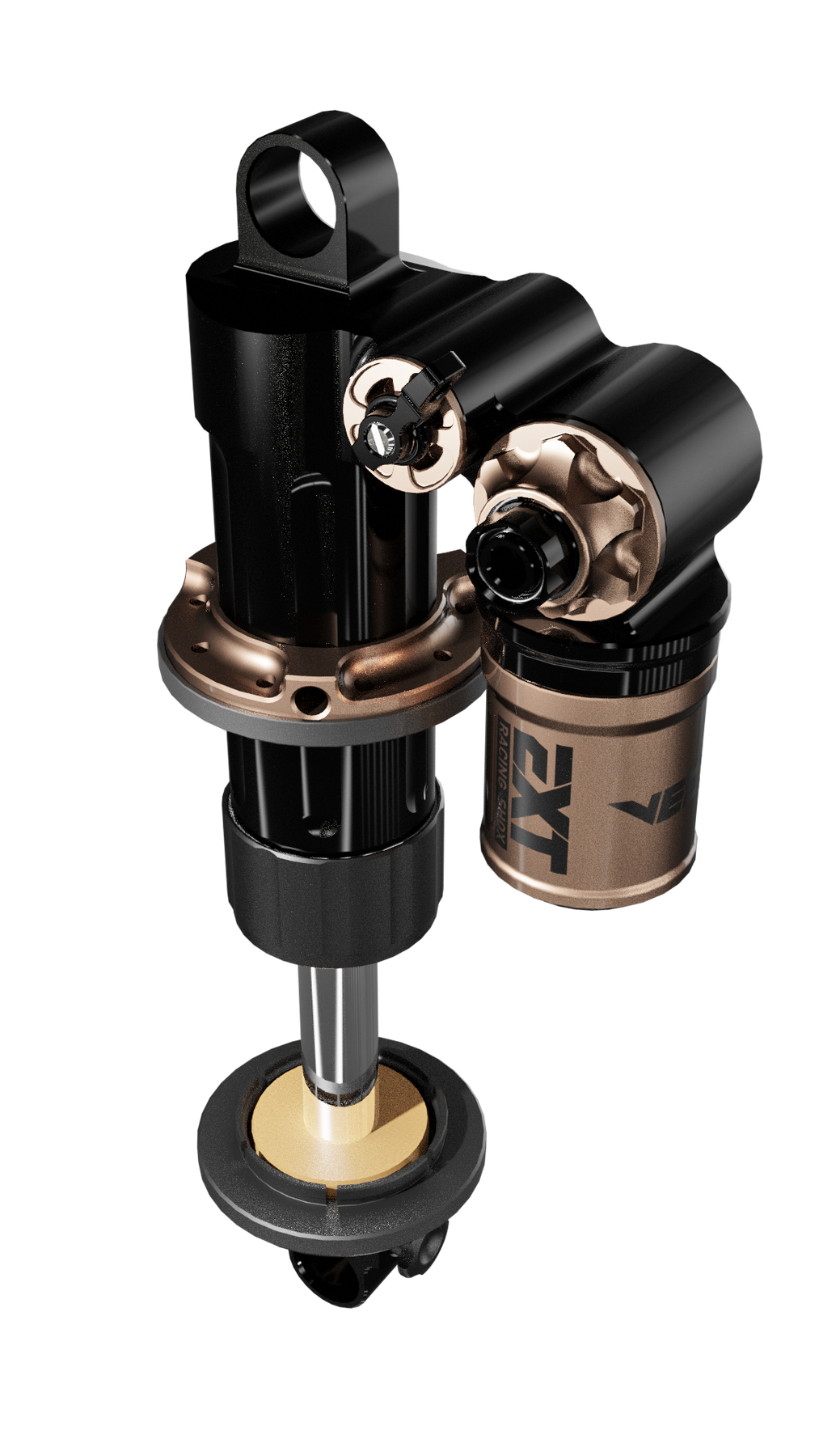

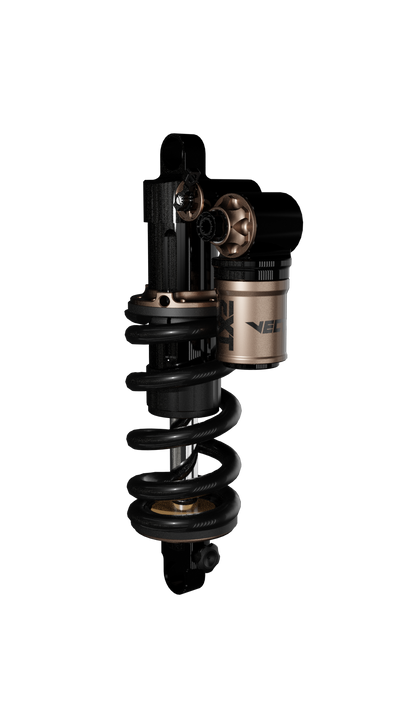

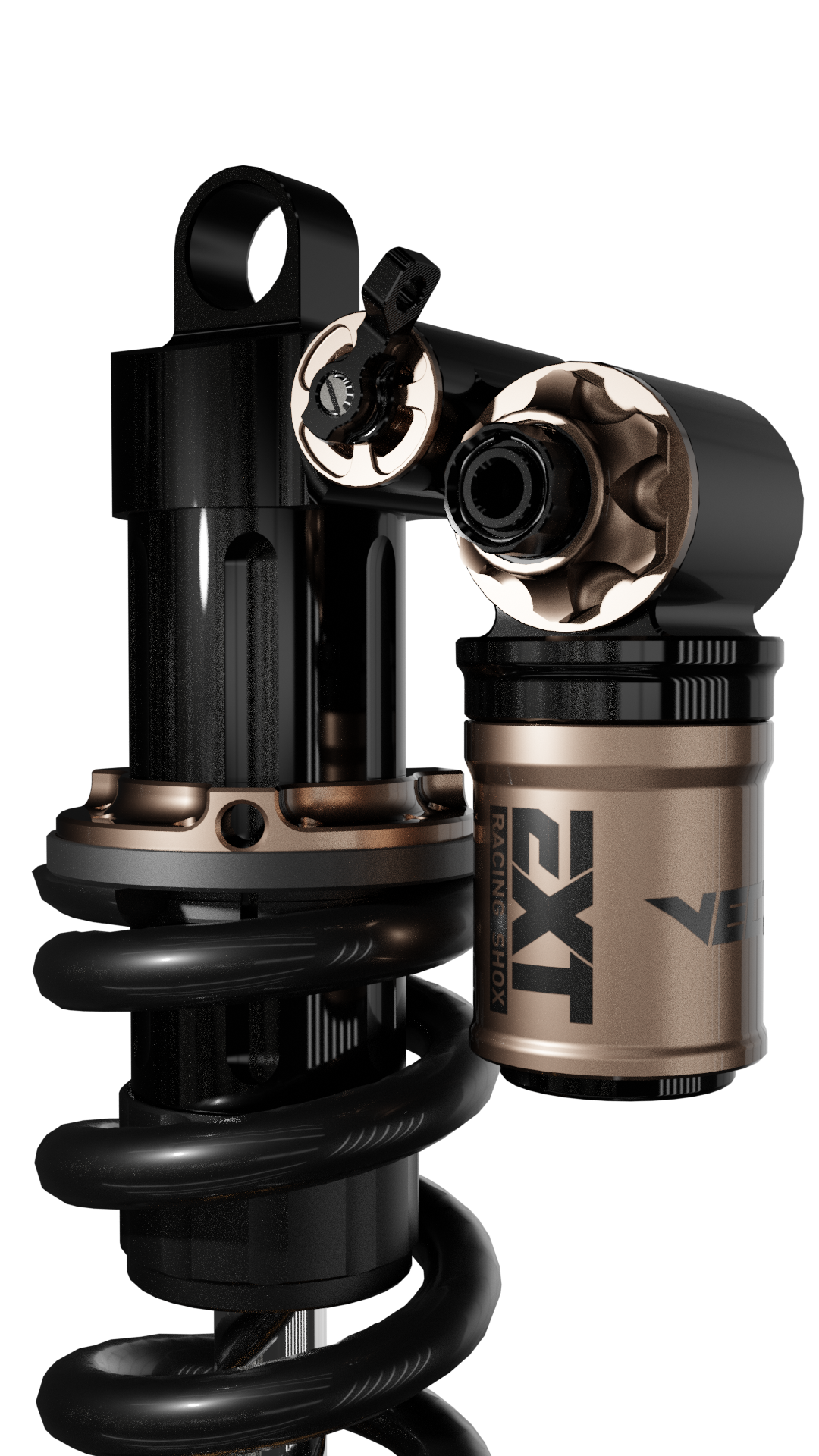

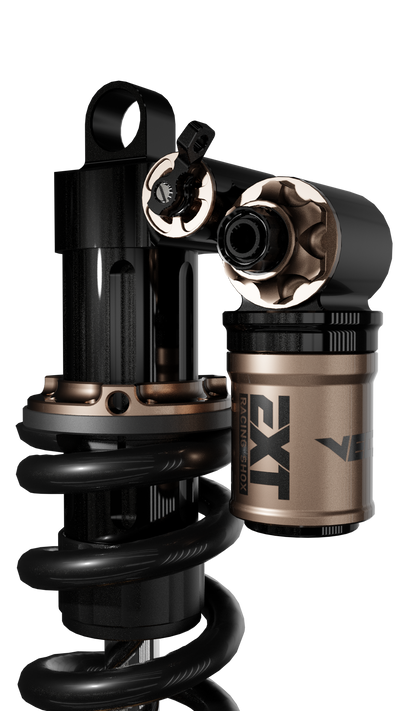

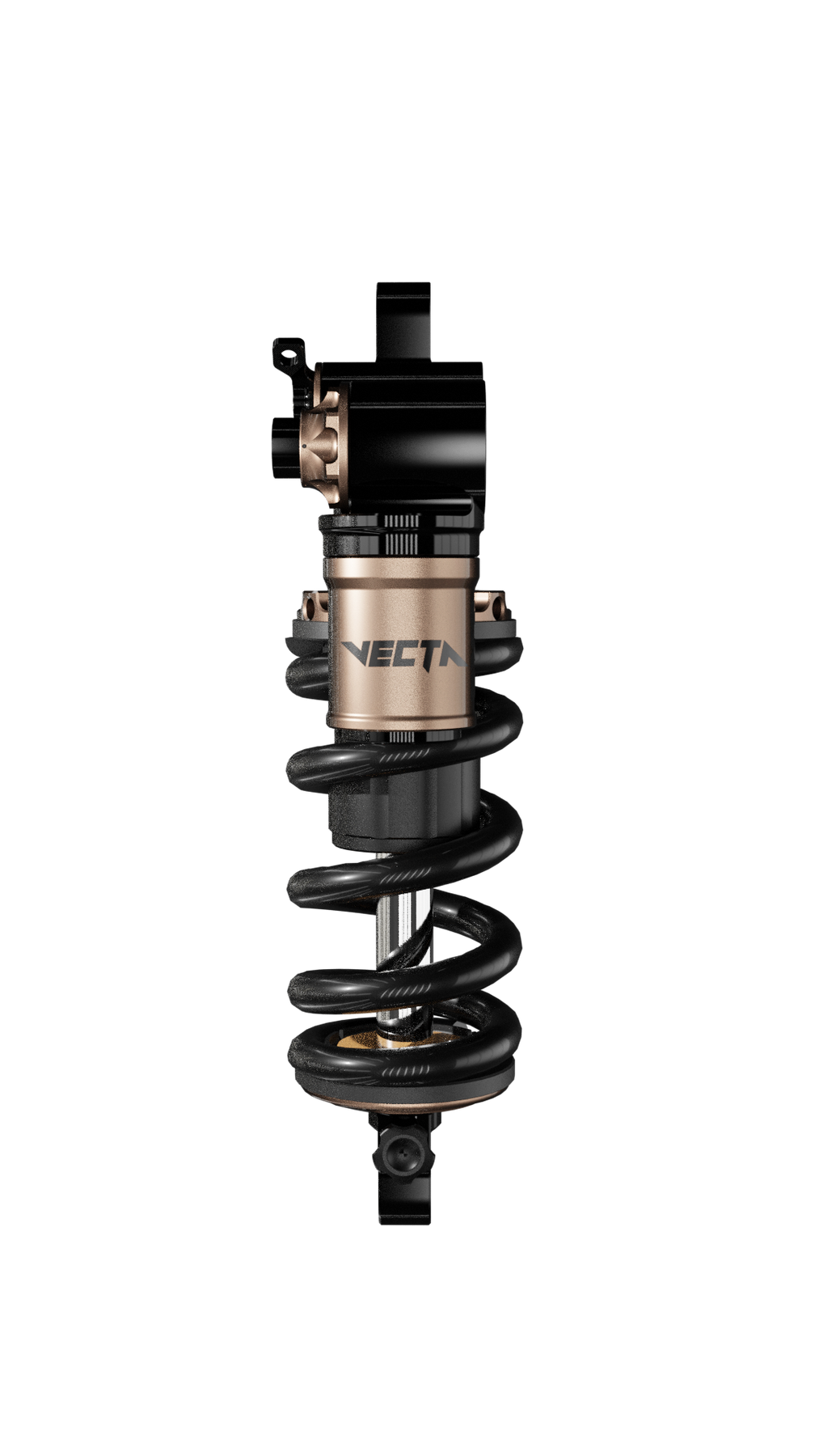

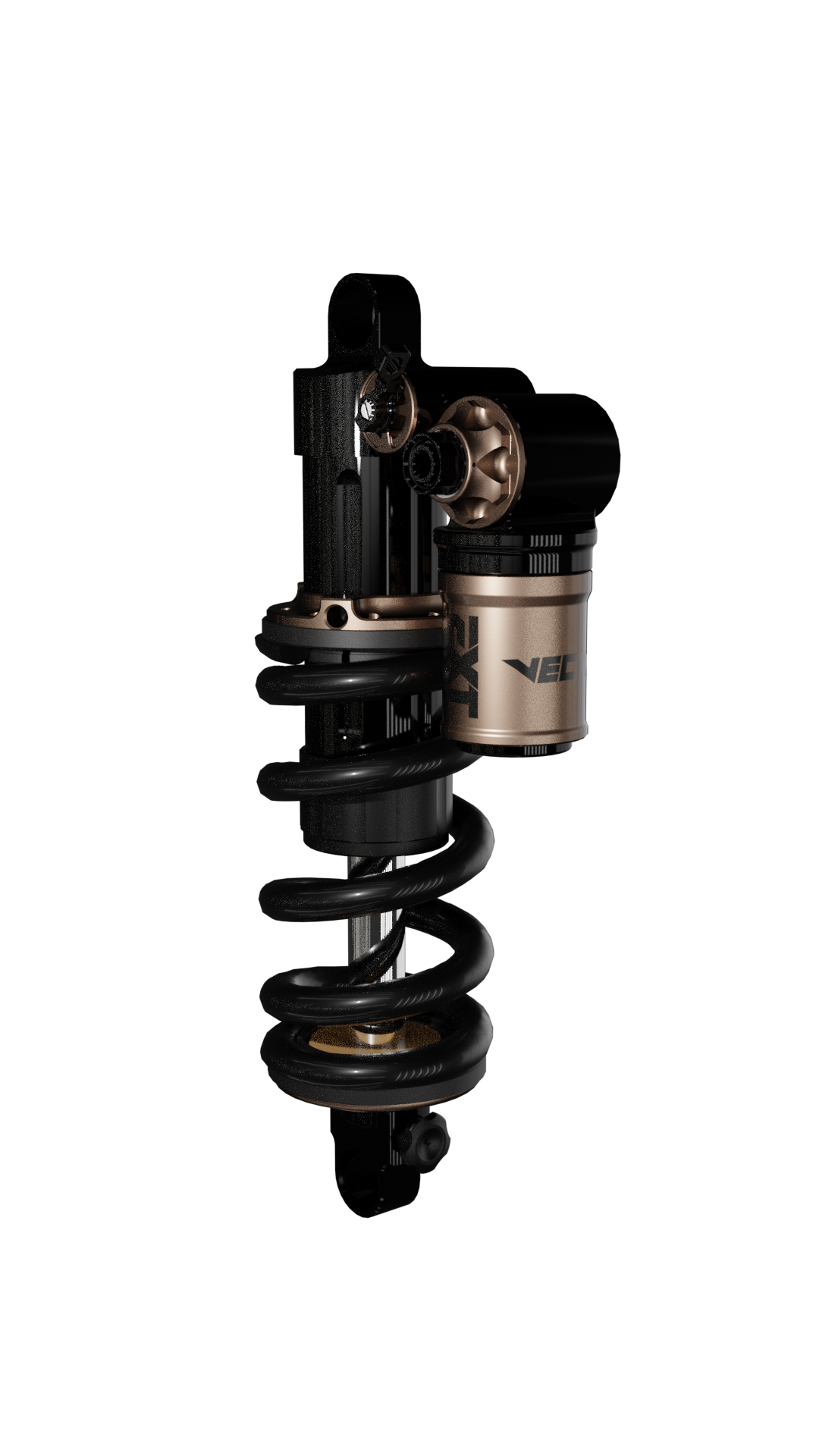

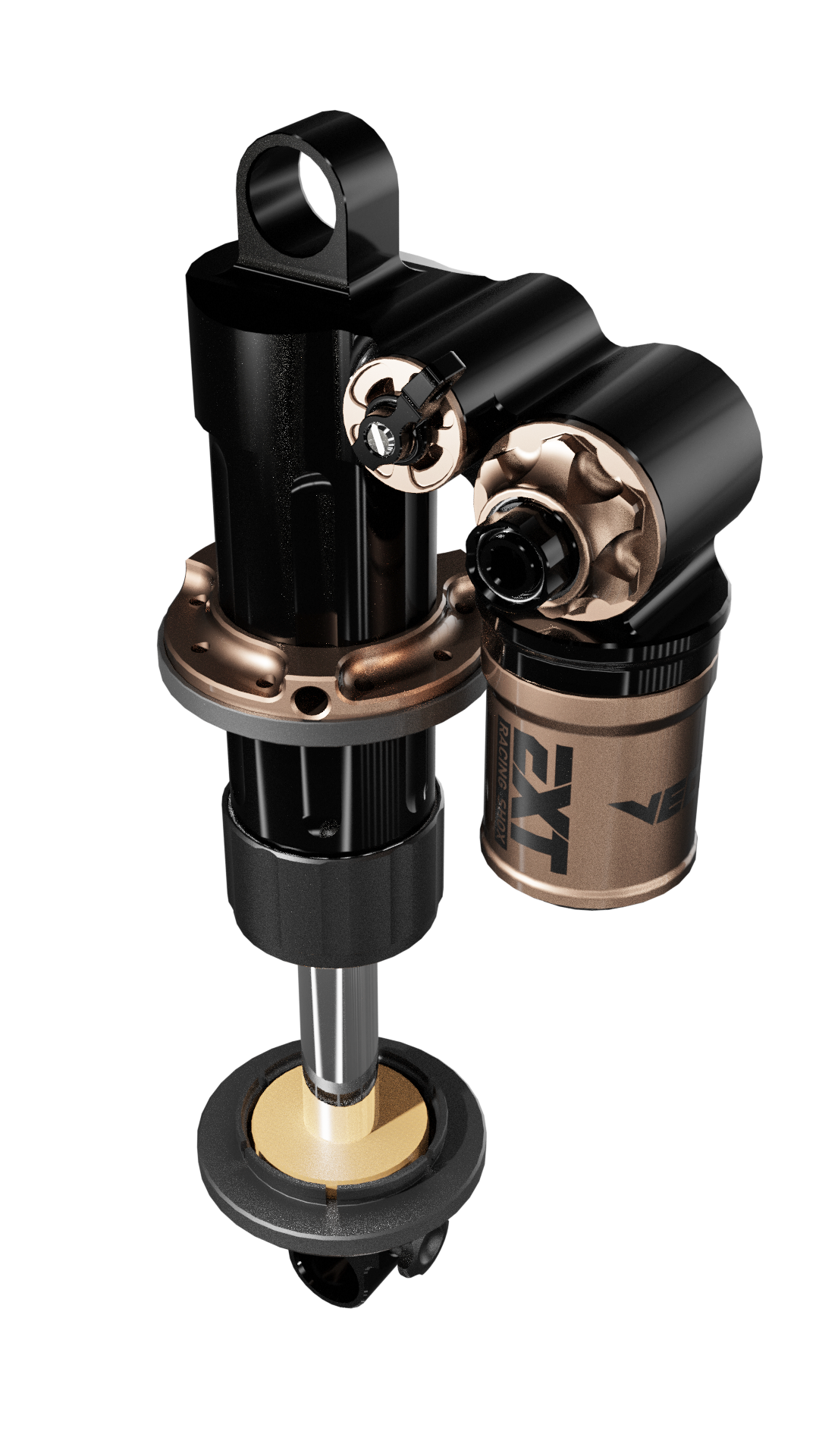

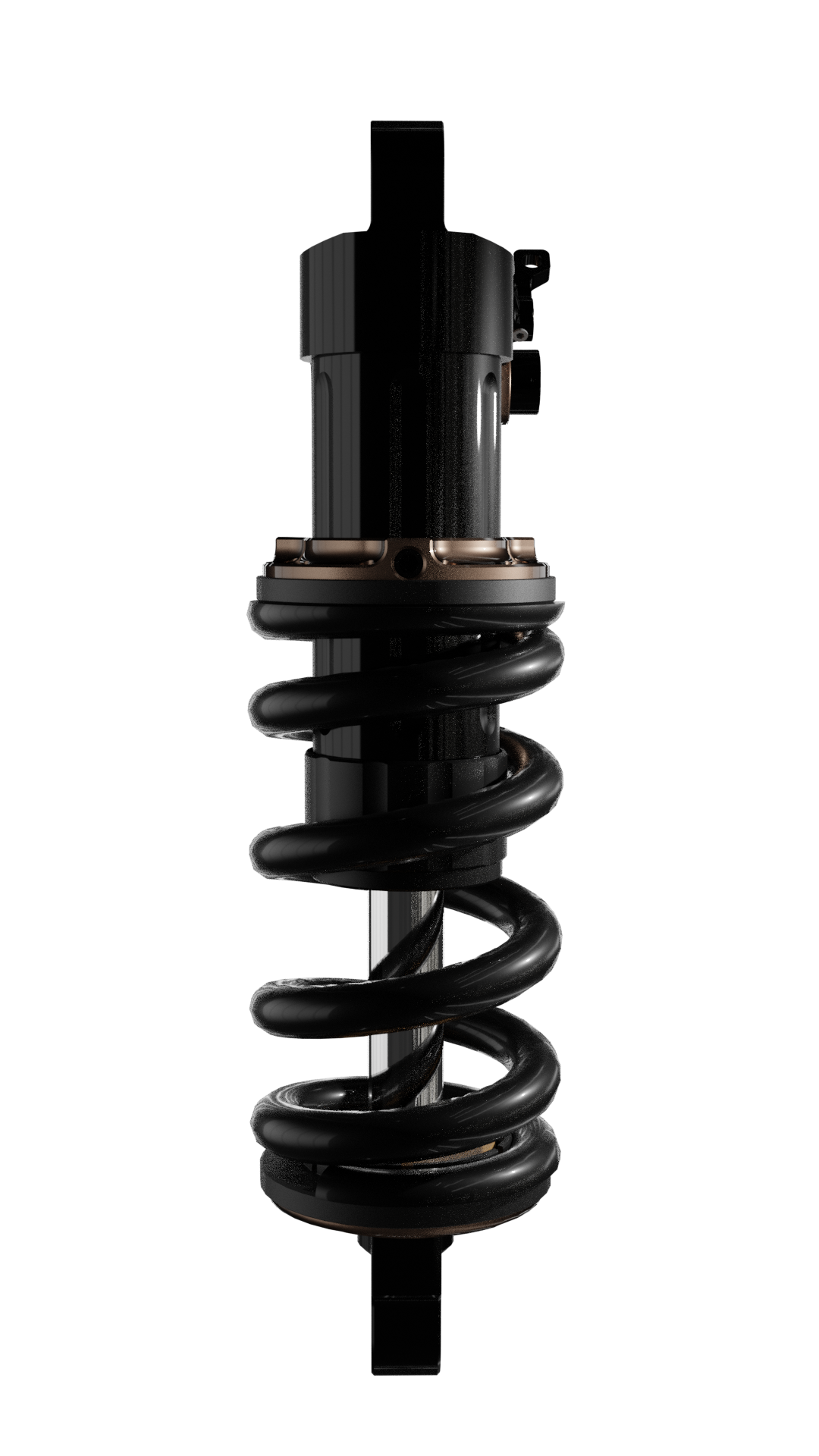

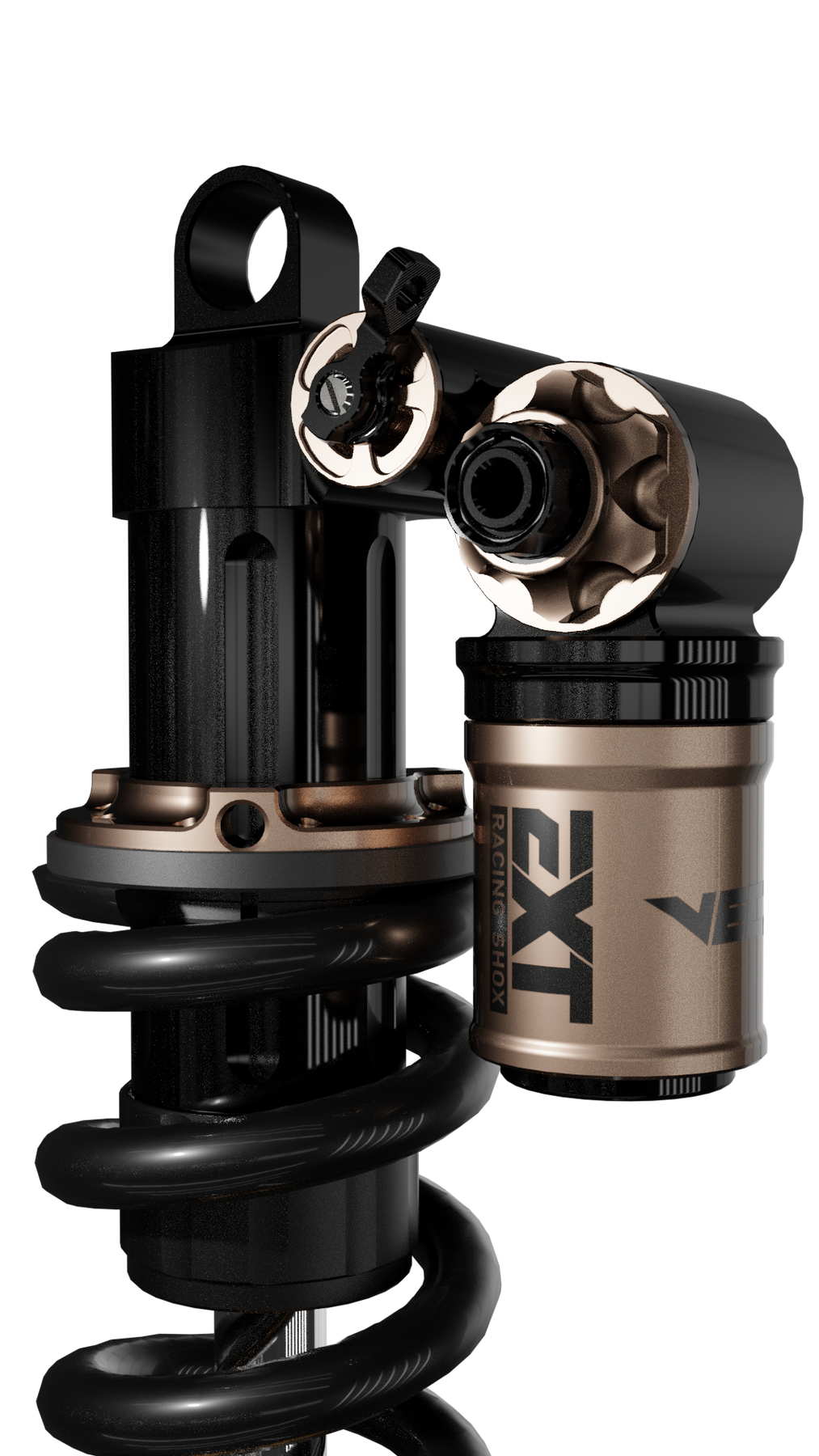

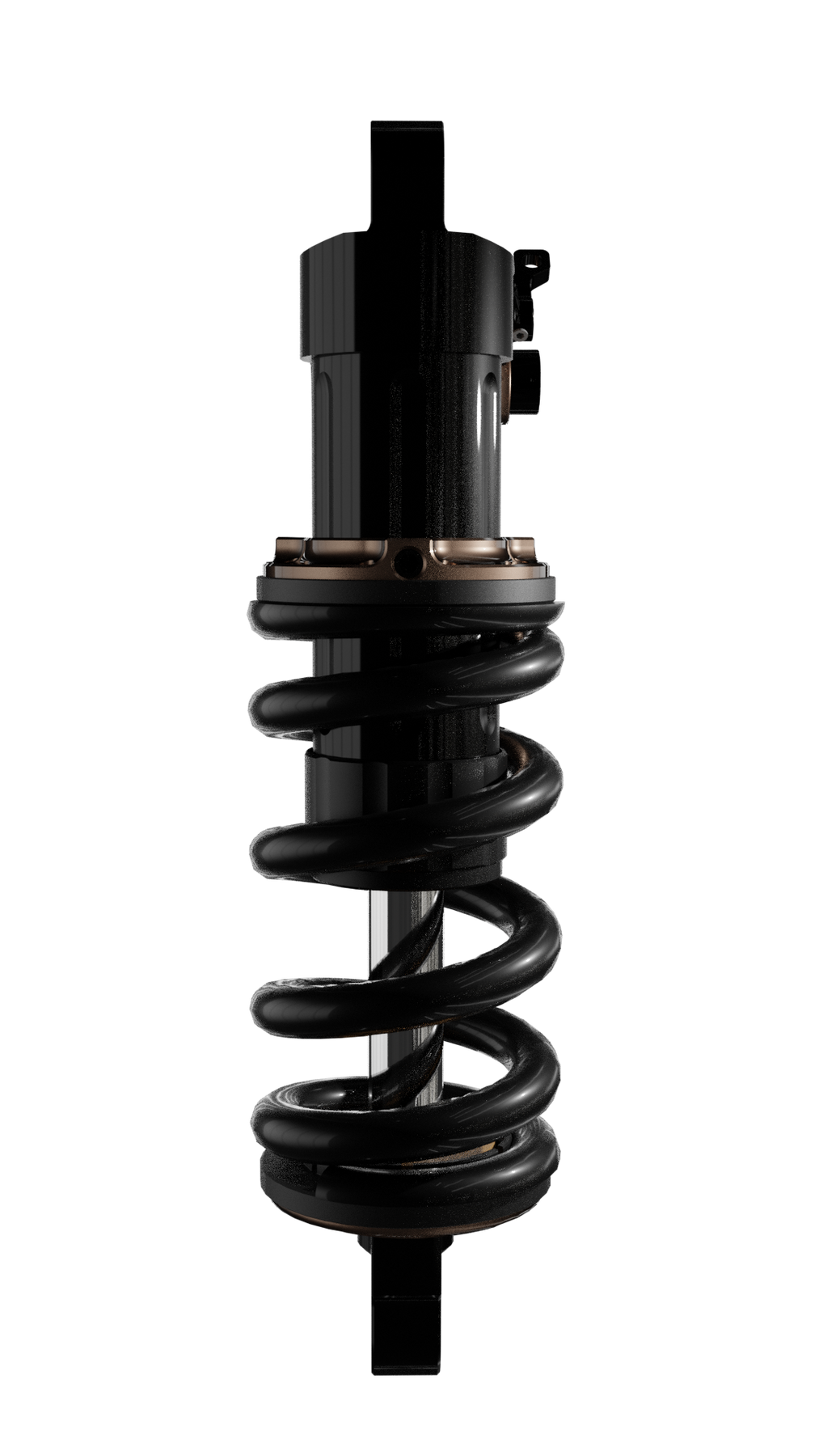

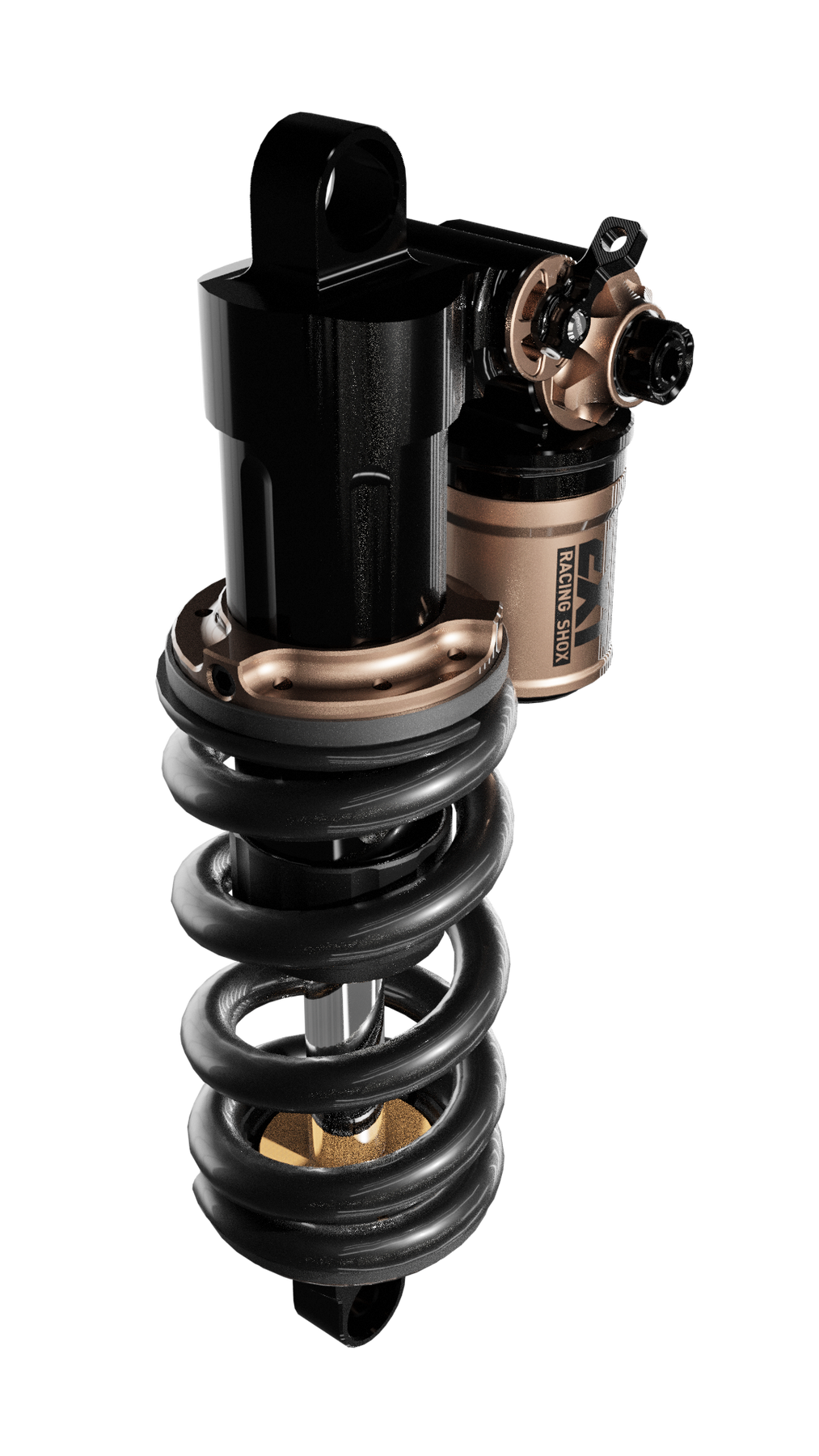

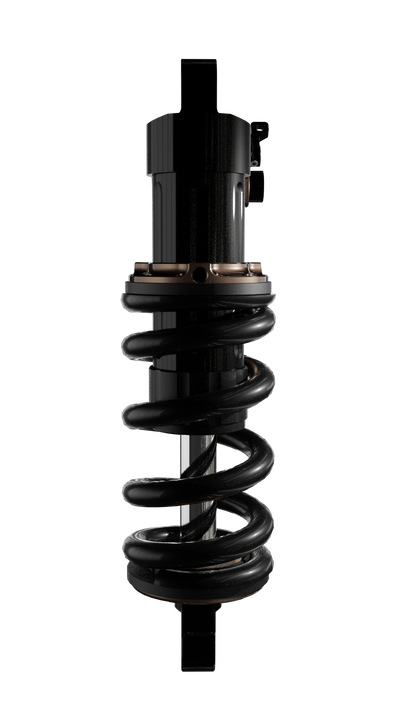

EXT VECTA

EXT VECTA | Easy to Tune, Hard to Beat!

Pre-orders available now by call or email. Fist shipment due early July 2025

The EXT VECTA isn't a stripped-down version of our high-end suspension, it's a whole new category. Designed with the same no-compromise approach as our premium lineup, VECTA brings top-tier damper performance to riders looking for reliability, adjustability, and ride quality at a more accessible price.

This isn’t a budget shock. This is VECTA: purpose-built, aggressively tuned, and ready to deliver.

Key Features and Performance Highlights

The VECTA combines proven EXT suspension technology with carefully selected features to offer maximum value and rider-focused performance.

Specifications:

• 3-way adjustable monotube damper: high-speed compression, low-speed compression, and rebound

• Wide adjustment range to suit most bikes and riders

• Uses the same valve design as the V4: adjust compression with just a 4 mm and 5 mm Allen key

• Factory-set Hydraulic Bottom-Out control for smooth, controlled end-stroke without additional tuning

• Lok 2.0 system with a separate, shim-tunable lockout circuit

• 14 mm hard chrome-molybdenum shaft for durability under stress

• Stiff negative spring to eliminate harsh top-out noise

• Advanced wear-resistant main tube coating for long-term reliability

• EV2S high-viscosity index damper fluid for consistent performance across a wide temperature range

• Polymer spring bushings to maintain alignment, reduce friction, and eliminate unwanted spring noise

• Large-volume bladder reservoir pre-charged to 55 psi for enhanced small-bump sensitivity

Quick and Simple Setup with EXT RideMaster

To make setup straightforward, the VECTA launches with the new EXT RideMaster app, a web-based tuning assistant that gives you setup tips based on your bike, terrain, and preferences.

• Easy to use with no technical jargon

• Designed for real-world riding styles

• Helps you dial in your suspension faster with a strong baseline

You don’t need to be a suspension expert. RideMaster gets you started quickly, leaving fine-tuning up to you.

EXT Fiveplus Warranty – 5 Years of Coverage

All VECTA shocks are backed by EXT's Fiveplus Warranty program, giving you an extended 5-year coverage period with annual maintenance.

• 2-year standard warranty + 3-year extended protection

• Requires yearly full-service to remain valid

• Product information is stored online via EXT or official dealers for easy reference

This warranty ensures peace of mind and long-term support for your investment.

Available Sizes – Metric and Trunnion

Metric Sizes:

• 210 x 50 mm

• 210 x 52.5 mm

• 210 x 55 mm

• 230 x 57.5 mm

• 230 x 60 mm

• 230 x 62.5 mm

• 230 x 65 mm

• 250 x 67.5 mm

• 250 x 70 mm

• 250 x 72.5 mm

• 250 x 75 mm

Trunnion Sizes:

• 165 x 45 mm

• 185 x 50 mm

• 185 x 52.5 mm

• 185 x 55 mm

• 205 x 57.5 mm

• 205 x 60 mm

• 205 x 62.5 mm

• 205 x 65 mm

• 225 x 67.5 mm

• 225 x 70 mm

• 225 x 72.5 mm

• 225 x 75 mm

Performance Meets Simplicity

Whether you're upgrading your trail bike or building a new setup from scratch, the EXT VECTA delivers race-ready performance with minimal fuss. Easy to set up, endlessly tunable, and built to last—VECTA is the shock that punches far above its price point.

*Spring sold separately
